Images may be representations. Actual product may vary.
| Core Size: | 26.5 x 17.1 x 2.68 |
| Tube Size: | 1.25" (MegaCool) |
| Rows: | 2 |
| Overall Size: | 30.63 x 17.69 |
| Flow Direction: | CrossFlow |
| Inlet / Outlet: | Top Passenger / Bottom Driver |
| Trans Cooler: | Yes (3/8 (in) Quick Connect) |
| Application: | First Gen Late Model GTO LS1 |
| Important Note: | GTO LS 1 OUTLETS |
| Fan Size: | Twin 12 (in) 1734 CFM total |
| Total Thickness: | 5.3 (Rad + Fan) |
| Availability: | In Stock |

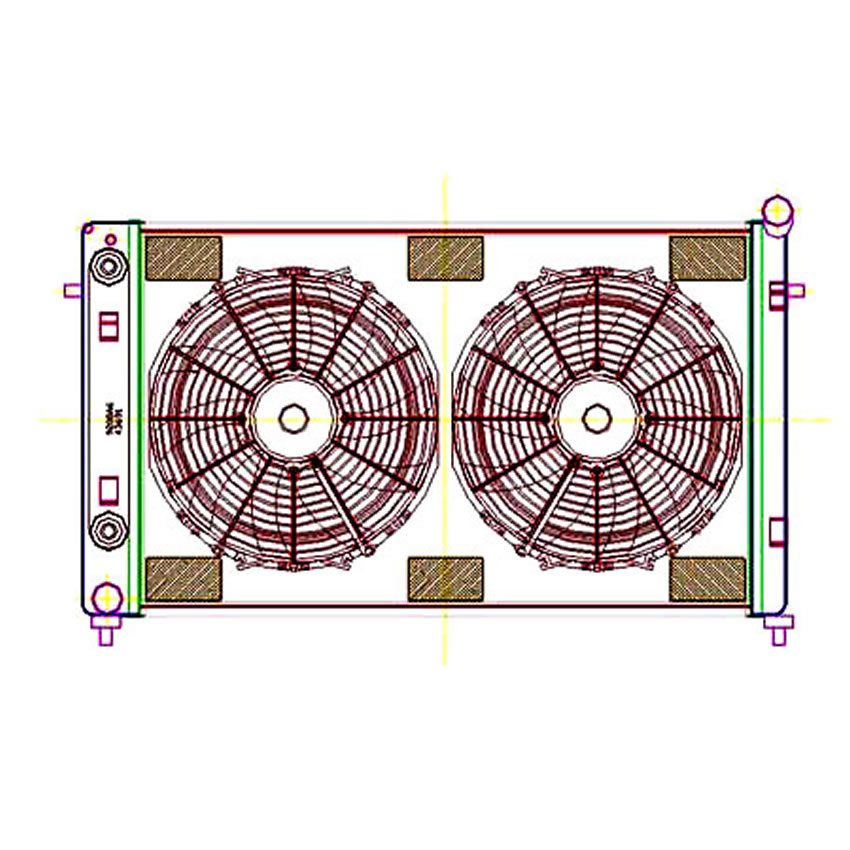

A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
